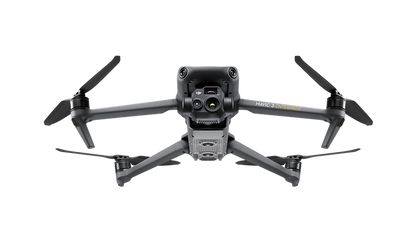

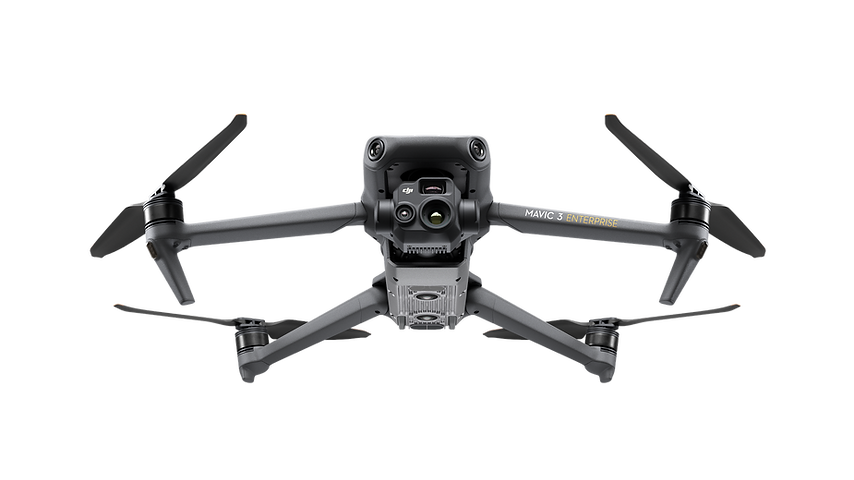

DJI MAVIC 3 ENTERPRISE THERMAL

The Mavic 3E Series (including the DJI Mavic 3 Enterprise Thermal) redefines industry standards for small commercial drones. With a mechanical shutter, a 56× zoom camera, and an RTK module for centimeter-level precision, the Mavic 3E brings mapping and mission efficiency to new heights. A thermal version (the DJI Mavic 3 Enterprise Thermal) is available for firefighting, search and rescue, inspection, and night operations.



COMPACT AND PORTABLE

Streamlined and compact, Mavic 3E Series (including the DJI Mavic 3 Enterprise Thermal) can be carried in one hand and deployed at a moment's notice. Perfect for beginner and veteran pilots alike, it's built to perform on lengthy missions.

Wide

4/3 CMOS, 20MP, Mechanical Shutter

Tele

Equivalent Focal Length: 162mm, 12MP, 56× Hybrid Zoom





SURVEY WITH SPEED

Mavic 3E's wide-angle 4/3 CMOS, 20MP sensor has a mechanical shutter to prevent motion blur and supports rapid 0.7-second interval shooting. Complete mapping missions with extraordinary efficiency without the need for Ground Control Points.

IMPROVED LOW-LIGHT PERFORMANCE

Mavic 3E's Wide camera has large 3.3μm pixels that, together with intelligent low-light mode, offer significantly improved performance in dim conditions.

FOCUS AND FIND

Both Mavic 3E and Mavic 3T are equipped with a 12MP Zoom Camera, supporting up to 56× Max Hybrid Zoom to see essential details from afar.

SIMULTANEOUS SPLIT-SCREEN ZOOM

Mavic 3T's thermal and zoom cameras support 28× continuous side-by-side zoom for easy comparisons.

BATTERIES OPTIMIZED FOR ENDURANCE

45-min flight durations let you cover more ground each mission, for surveying up to 2 square kilometers in a single flight.

Max Flight Time

45 Minutes

Surveying Area in a Single Flight

2 Square Kilometers

Fast charge batteries with a 100W charging hub, or directly charge the drone with 88W fast charging.

Charging Hub

100W

Aircraft

88W

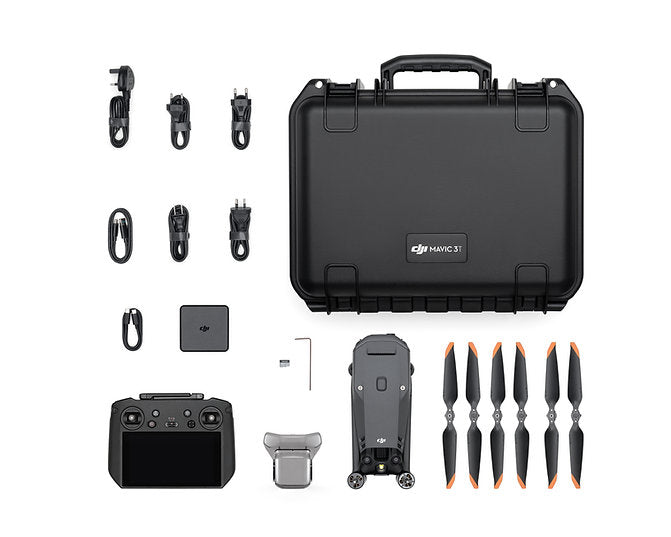

What's In The Box?

Mavic 3T Aircraft x1

Mavic 3 Intelligent Flight Battery x1

MicroSD Card 64GB x1

Gimbal Protector x1

Mavic 3 Enterprise Series Propellers (pair) x3

RC Pro Enterprise x1

Screwdriver x1

USB-C Power Adapter (100W) x1

100W Power Adaptor AC Cable x1

USB-C Cable x1

USB-C to USB-C Cable x1

Protector Case x1



Technical Specs

WEIGHT (WITH PROPELLERS, WITHOUT ACCESSORIES) [1]

DJI Mavic 3E: 915 g
DJI Mavic 3T: 920 g

MAX TAKEOFF WEIGHT

DJI Mavic 3E: 1,050 g
DJI Mavic 3T: 1,050 g

DIMENSIONS

Folded (without propellers): 221×96.3×90.3 mm (L×W×H)
Unfolded (without propellers): 347.5×283×107.7 mm (L×W×H)

GNSS

GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when the RTK module is enabled)

HOVERING ACCURACY

Vertical: ±0.1 m (with Vision System); ±0.5 m (with GNSS); ±0.1 m (with RTK)
Horizontal: ±0.3 m (with Vision System); ±0.5 m (with High-Precision Positioning System); ±0.1 m (with RTK)

OPERATING TEMPERATURE RANGE

-10° to 40° C (14° to 104° F)

WIDE CAMERA

SENSOR

DJI Mavic 3E: 4/3 CMOS, Effective pixels: 20 MP
DJI Mavic 3T: 1/2-inch CMOS, Effective pixels: 48 MP

LENS

DJI Mavic 3E:
FOV: 84°
Format Equivalent: 24 mm
Aperture: f/2.8-f/11
Focus: 1 m to ∞

DJI Mavic 3T:
FOV: 84°
Format Equivalent: 24 mm
Aperture: f/2.8
Focus: 1 m to ∞

SHUTTER SPEED

DJI Mavic 3E:
Electronic Shutter: 8-1/8000 s
Mechanical Shutter: 8-1/2000 s

DJI Mavic 3T:
Electronic Shutter: 8-1/8000 s

TELE CAMERA

SENSOR

1/2-inch CMOS, Effective pixels: 12 MP

LENS

FOV: 15°
Format Equivalent: 162 mm
Aperture: f/4.4
Focus: 3 m to ∞

SHUTTER SPEED

Electronic Shutter: 8-1/8000 s

THERMAL CAMERA [5]

THERMAL IMAGER

Uncooled VOx Microbolometer

PIXEL PITCH

12 μm

FRAME RATE

30 Hz

LENS

DFOV: 61°
Format Equivalent: 40 mm
Aperture: f/1.0
Focus: 5 m to ∞

SENSING

TYPE

Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.

FORWARD

Measurement Range: 0.5-20 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, Vertical 103°

BACKWARD

Measurement Range: 0.5-16 m
Effective Sensing Speed: Flight Speed ≤12 m/s
FOV: Horizontal 90°, Vertical 103°

LATERAL

Measurement Range: 0.5-25 m
Effective Sensing Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, Vertical 85°

UPWARD

Measurement Range: 0.2-10 m
Effective Sensing Speed: Flight Speed ≤6 m/s
FOV: Front and Back 100°, Left and Right 90°

DOWNWARD

Measurement Range: 0.3-18 m
Effective Sensing Speed: Flight Speed ≤6 m/s
FOV: Front and Back 130°, Left and Right 160°

OPERATING ENVIRONMENT

Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)
Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)

BATTERY

CAPACITY

5000 mAh

STANDARD VOLTAGE

15.4 V

MAX CHARGING VOLTAGE

17.6 V

TYPE

LiPo 4S

CHEMICAL SYSTEM

LiCoO2

ENERGY

77 Wh

WEIGHT

335.5 g

CHARGING TEMPERATURE

5° to 40° C (41° to 104° F)

CHARGER

INPUT

100-240 V (AC Power), 50-60 Hz, 2.5 A

OUTPUT POWER

100 W

OUTPUT

Max. 100 W (total)
When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.



OTHER NOTES

[1] The standard weight of the aircraft (including the battery, propellers, and a microSD card). The actual product weight may vary due to differences in batch materials and external factors.
[2] Maximum speed in Sport mode is 19m/s when operating in EU regions.
[3] Max wind speed resistance during takeoff and landing.
[4] Measured with Mavic 3 Enterprise Series flying at a constant speed of 32.4 kph in a windless environment at sea level until the battery reached 0%. Data is for reference only. Please pay attention to RTH reminders in the DJI Pilot 2 app during flight.
[5] DO NOT expose the infrared camera lenses to strong sources of energy such as the sun, lava, or laser beams. Otherwise, the camera sensor may be burned, leading to permanent damage.
[6] In some countries and regions, the 5.8 and 5.1GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Check local laws and regulations for more information.
[7] Measured in an unobstructed environment free of interference. The above data shows the farthest communication range for one-way, non-return flights (with no payload) under each standard. During your flight, please pay attention to RTH reminders in the DJI Pilot 2 app.
[8] Data tested under different standards in unobstructed environments with typical interference. Uses for reference purposes only and provides no guarantee as to the actual flight distance.
[9] Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. With footage saved on the officially recommended microSD cards. Download speeds may vary depending on actual conditions.
[10] Will support more DJI aircraft in the future. Visit the official website for the latest information.
[11] Data was measured in a controlled environment and is for reference only. Actual use experience may vary depending on software version, sound source, specific environment, and other conditions.
