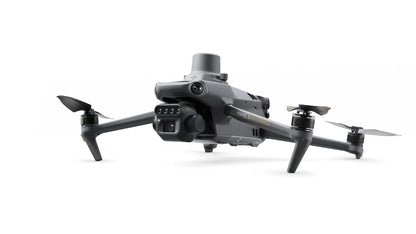

DJI MAVIC 3 MULTISPECTRAL

Effective aerial surveying needs to see the invisible. That's why Mavic 3 Multispectral has two forms of sight. It combines an RGB camera with a multispectral camera to scan and analyze crop growth with total clarity. Agricultural production management requires precision and data, and Mavic 3M delivers both.



Compact and portable - Foldable for easy storage

Multispectral Camera - 4 × 5MP & G/R/RE/NIR

RGB camera - 20 MP & 4/3 CMOS, mechanical shutter

Safe and stable - Omnidirectional Obstacle Avoidance & 15km Transmission Distance

Precise positioning- Centimeter-level RTK positioning & Microsecond-level time synchronization

Efficient aerial surveying - Up to 200 hectares per flight



MULTISPECTRAL + RGB IMAGING SYSTEM

HIGHLY INTEGRATED IMAGING SYSTEM

Newly upgraded imaging system with one 20MP RGB camera and four 5MP multispectral cameras (green, red, red edge, and near infrared). Enables applications such as high-precision aerial surveying, crop growth monitoring, and natural resource surveys.



5 MP MULTISPECTRAL CAMERA

1st Camera - Near-infrared (NIR) 860 nm ± 26 nm

2nd Camera - Red edge (RE) 730 nm ± 16 nm

3rd Camera - Red (R) 650 nm ± 16 nm

4th Camera - Green (G) 560 nm ± 16 nm



RGB CAMERA CHARACTERISTICS

4/3 CMOS - 20MP image sensor

1/2000s - Fastest mechanical shutter speed

0.7s - High-speed burst when RGB camera is used



SUNLIGHT SENSOR

The built-in sunlight sensor captures solar irradiance and records it in an image file, allowing for light compensation of image data during 2D reconstruction. This results in more accurate NDVI results, as well as improved accuracy and consistency of data acquired over time.



ULTRA-LONG BATTERY LIFE, FAST BURSTS

43 minutes - Cruise time

200 hectare - A single flight can complete mapping operations over an area of 200 hectares.



FAST CHARGING

100W Battery Charging Hub - High-efficiency fast charging

88W fast charging - Aircraft

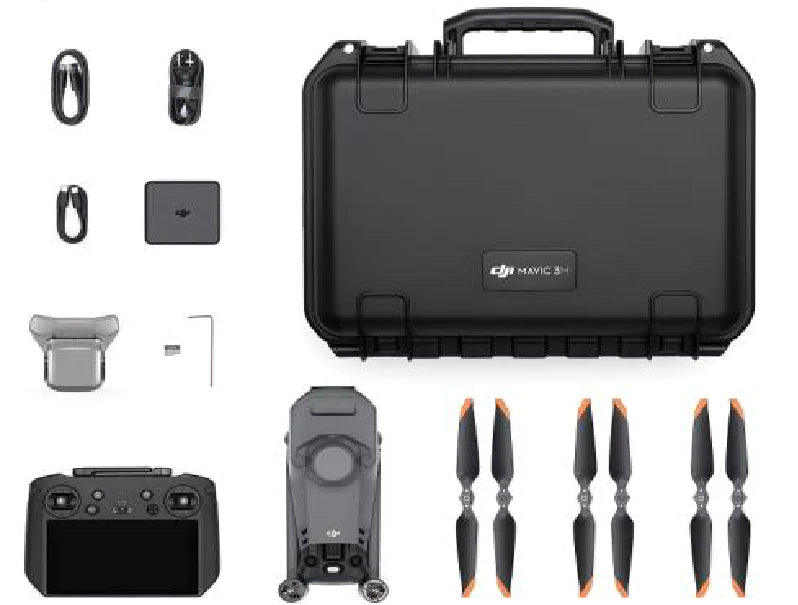

What's In The Box?

Mavic 3 Multispectral Aircraft (RTK Module and MicroSD installed) x1

Remote Controller x1

Propeller (pair) x1

Charger x1

Power cable x1

USB-C cable x1

USB-C to USB-C cable x1

Hard carry case x1

Screwdriver x1



Technical Specs

AIRCRAFT

NET WEIGHT (WITH PROPELLERS AND RTK MODULE) [1]

951 g

MAX TAKEOFF WEIGHT

1,050 g

DIMENSIONS (FOLDED/UNFOLDED)

Folded (without propellers): 223×96.3×122.2 mm (Length×Width×Height)
Unfolded (without propellers): 347.5×283×139.6 mm (Length×Width×Height)

RGB CAMERA

IMAGE SENSOR

4/3 CMOS

Effective Pixels: 20 MP

LENS

FOV: 84°

Equivalent focal length: 24 mm

Aperture: f/2.8 to f/11

Focus: 1 m to ∞

SHUTTER SPEED

Electronic shutter: 8-1/8000 s

Mechanical shutter: 8-1/2000 s

MULTISPECTRAL CAMERA

IMAGE SENSOR

1/2.8-inch CMOS, effective pixels: 5 MP

LENS

FOV: 73.91° (61.2° x 48.10°)

Equivalent focal length: 25 mm

Aperture: f/2.0

Focus: Fixed Focus

MULTISPECTRAL CAMERA BAND

Green (G): 560 ± 16 nm;

Red (R): 650 ± 16 nm;

Red Edge (RE): 730 ± 16 nm;

Near infrared (NIR): 860 ± 26 nm;

GAIN RANGE

1x-32x

SHUTTER SPEED

Electronic Shutter: 1/30~1/12800 s

SENSING

TYPE

Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft.

FORWARD

Measurement Range: 0.5-20 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, Vertical 103°

BACKWARD

Measurement Range: 0.5-16 m
Effective Sensing Speed: Flight Speed ≤12 m/s
FOV: Horizontal 90°, Vertical 103°

LATERAL

Measurement Range: 0.5-25 m
Effective Sensing Speed: Flight Speed ≤15 m/s
FOV: Horizontal 90°, Vertical 85°

UPWARD

Measurement Range: 0.2-10 m
Effective Sensing Speed: Flight Speed ≤6 m/s
FOV: Front and Back 100°, Left and Right 90°

DOWNWARD

Measurement Range: 0.3-18 m
Effective Sensing Speed: Flight Speed ≤6 m/s
FOV: Front and Back 130°, Left and Right 160°

OPERATING ENVIRONMENT

Forward, Backward, Lateral, and Upward: Surface with a clear pattern and adequate lighting (lux >15)
Downward: Diffuse reflective surface with diffuse reflectivity>20% (e.g. walls, trees, people) and adequate lighting (lux >15)

BATTERY

CAPACITY

5000 mAh

STANDARD VOLTAGE

15.4 V

MAX CHARGING VOLTAGE

17.6 V

TYPE

LiPo 4S

CHEMICAL SYSTEM

LiCoO2

ENERGY

77 Wh

WEIGHT

335.5 g

CHARGING TEMPERATURE

5° to 40° C (41° to 104° F)

CHARGER

INPUT

100-240 V (AC Power), 50-60 Hz, 2.5 A

OUTPUT POWER

100 W

OUTPUT

Max. 100 W (total)
When both ports are used, the maximum output power of each interface is 82 W, and the charger will dynamically allocate the output power of the two ports according to the load power.

FOOTNOTES

1. Standard weight of the aircraft (including battery, propellers, and microSD card). The actual product weight may vary due to differences in batch materials and external factors. Use for reference only.
2. The max speed in the EU cannot exceed 19 m/s.
3. Max wind resistance during takeoff and landing.
4. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at a constant speed of 36 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
5. Data measured using the DJI Mavic 3M in a wind-free environment hovering over the sea level until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
6. Data measured using the DJI Mavic 3M in a wind-free environment while flying at sea level at 57.6 kph until there was 0% power remaining. For reference only. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
7. In some countries, the 5.1/5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations before use.
8. Data measured flying in an unobstructed outdoor environment free of interference. It shows the farthest communication range for one-way, non-Return to Home flights under each standard. Please pay attention to Return to Home prompts in the DJI Pilot 2 app when flying.
9. Data measured in an unobstructed environment with typical interference under various standards. The actual flight distance may vary and is for reference only.
10. The DJI RC Plus will support more DJI aircraft in the future.
