High-precision laser scanners are changing the game across countless industries—from construction and manufacturing to archaeology and even self-driving cars. These incredible tools can capture highly detailed 3D data with pinpoint accuracy, helping professionals visualize, analyze, and improve their work like never before.
In this blog series, we’ll take a deep dive into the world of laser scanning. We’ll break down how these scanners work, compare different types (like mobile vs. terrestrial), explore the best software options, and look at the exciting ways this technology is being used today. Whether you’re just getting started or already working in the field, this series will give you a better understanding of why laser scanning is making such a huge impact.
Let’s dive in and discover the power of precision—one scan at a time!
Exploring High-Precision Laser Scanners: What Are They and How Do They Work?
Introduction

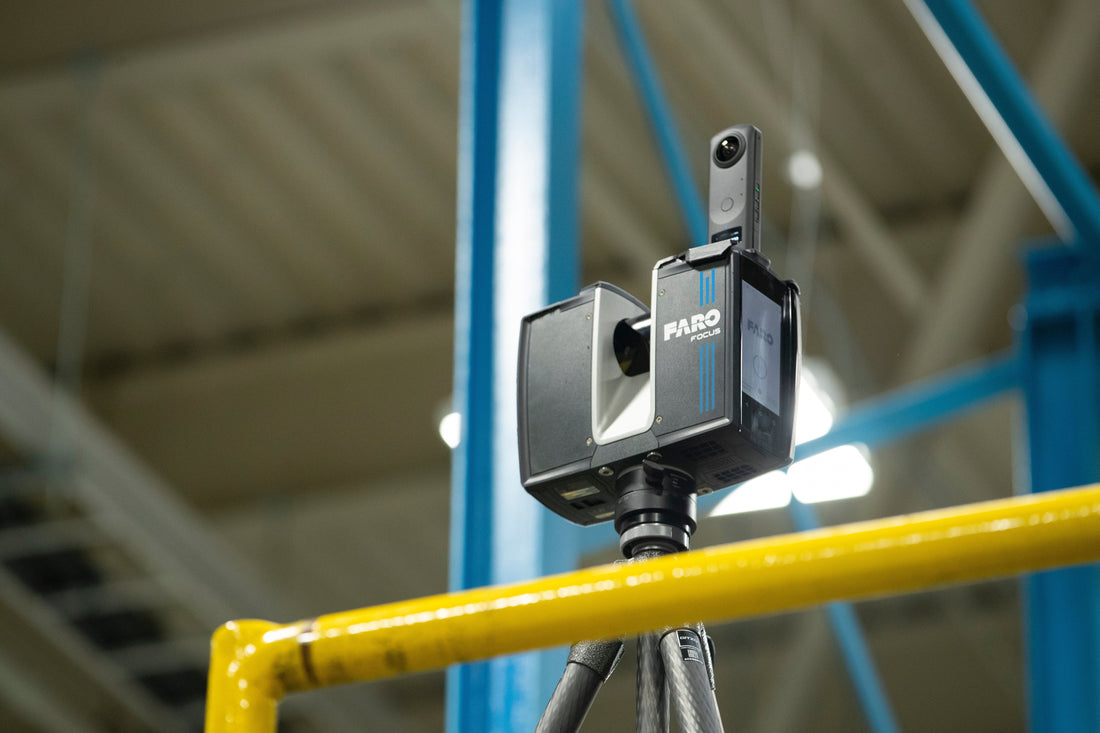

Survey-grade terrestrial laser scanners are pretty cool pieces of technology that help us capture super detailed 3D data of everything around us. They work by shooting out laser beams to scan an area and measuring how long it takes for the laser to bounce back. This technology, called LiDAR (Light Detection and Ranging), is used in industries like surveying, construction, engineering, and even archaeology, where getting precise data really matters. These scanners are designed to give us high accuracy, and they’re often used to scan things like buildings, landscapes, and other structures right from the ground.
How They Work
- Laser Emission and Reflection: At the core of how these scanners work, they send out laser pulses in all sorts of directions. The pulses travel out, hit things, and bounce back. By timing how long it takes for the pulse to return, the scanner can figure out how far away everything is.
- Measuring Distance: There are a couple of ways the scanner can figure out the distance to an object. The most common method is the time-of-flight (ToF) technique, where the scanner measures how long it takes for the pulse to go out and come back. There’s also the phase shift method, which uses a modulated signal to calculate distance based on the difference in the signal’s phase between sending and receiving.
- Creating a Point Cloud: After the scanner gets the distance, it uses the angle of the laser pulse to pinpoint where that point is in 3D space. It collects thousands, or even millions, of points from different angles, creating what’s called a "point cloud" — basically a 3D map of the area.
- Position and Orientation: To make sure everything is as accurate as possible, these scanners often work with GPS systems (GNSS) or other survey instruments, which help the scanner know exactly where it is and what direction it's facing. Some scanners even have built-in sensors to track tiny changes in orientation, giving even better data.
- Data Processing: Once the scanner collects all that raw data, it’s processed using special software. This cleans up any noise or errors and creates a precise 3D model of the area. This model can then be used for anything from making detailed maps to planning projects.
Key Features of Survey-Grade Terrestrial Laser Scanners
- High Accuracy: These scanners are incredibly precise, often measuring to within just a few millimeters. This makes them perfect for tasks where detail is essential, like mapping landscapes or documenting buildings.
- Long Range: Survey-grade scanners can measure distances over several hundred meters, which makes them great for large projects or hard-to-reach areas.
- Fast Data Collection: These scanners are fast. They can capture millions of points per second, so you can scan huge areas in a short amount of time, even in complex environments.
- 360° Scanning: Many of these scanners can scan all the way around them in every direction, ensuring they get a complete picture of the area and capture everything from all angles.
- Detailed Point Clouds: These scanners produce dense point clouds with millions of data points, offering incredible detail. This helps create highly accurate 3D models that can be used for everything from design to analysis.
Where Survey-Grade Terrestrial Laser Scanners Are Used
- Topographic Surveys: These scanners are super useful for mapping out large, rugged terrains. They help create digital terrain models (DTMs) that give detailed and accurate representations of natural landscapes.
- Building and Infrastructure Documentation: Laser scanners are often used to create 3D models of buildings, bridges, tunnels, and other structures. They help monitor the condition of these structures, plan renovations, and ensure construction projects stay on track.
- Geospatial Mapping: These scanners provide accurate data that can be used in Geographic Information Systems (GIS). This helps create detailed maps and spatial models for a variety of applications.
- Mining and Excavation: In the mining industry, these scanners track stockpiles, measure excavation progress, and create accurate 3D models of mining sites. They help with volume calculations and ensure that operations stay on schedule and are safe.
- Cultural Heritage Preservation: Laser scanning is a game-changer when it comes to preserving historical monuments, buildings, and archaeological sites. By capturing the exact shape and condition of these sites, it allows for virtual restoration and future conservation efforts.
- Construction and Engineering: Survey-grade scanners are a huge help in construction projects. They provide real-time data for analyzing the site, tracking progress, and making sure everything is on track. They’re also used in Building Information Modeling (BIM), which ensures that designs are accurate and construction stays true to plan.
The price of a survey-grade terrestrial laser scanner can vary quite a bit depending on what you're looking for in terms of features and capabilities. Here's a general idea of what you can expect:
- Entry-Level Models: These are more basic scanners, great for smaller projects or less complex scans. They typically cost anywhere from CAD $40,000 to $60,000.
- Mid-Range Models: These scanners offer better accuracy, longer range, and faster data collection. They’re great for professional work and usually fall between CAD $60,000 and $100,000.
- High-End Models: If you need top-notch accuracy, long-range scanning, or advanced features like GPS integration or robotic functionality, these models can start around CAD $100,000 and can go up to CAD $250,000 or more.
On top of the scanner itself, keep in mind there are also costs for software to process the data, as well as ongoing maintenance and training. So, the overall cost of owning and using a laser scanner can be higher than just the initial purchase price.
Final Thoughts
Survey-grade terrestrial laser scanners are incredibly powerful tools that combine laser technology with precise measurement systems to create accurate 3D models of the world around us. These scanners can quickly capture a lot of data with incredible accuracy, making them indispensable in industries like construction, surveying, archaeology, and more. As technology improves, these scanners will only get faster, more accurate, and even more accessible, making them even more essential for professionals who need precise geospatial data. Whether it’s creating detailed digital models, monitoring construction progress, or preserving historical landmarks, these laser scanners are changing the way we capture and analyze the world.
